EPOXY ASPHALT BINDERS FOR HFS


PRODUCT OVERVIEW

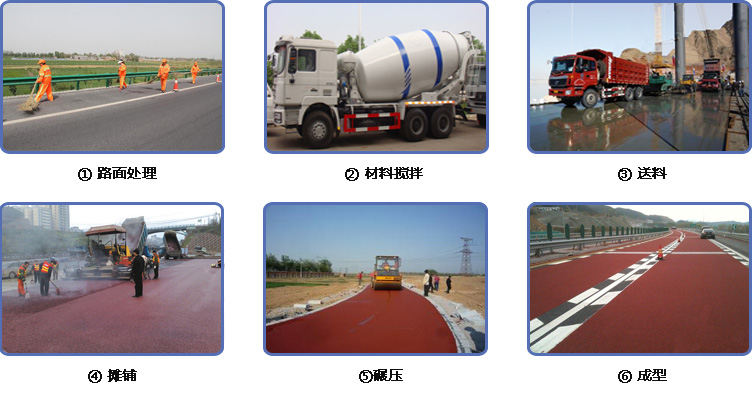

The colour non-slip road surface is a thin-cover technology combining road markings with anti-skid property. Depending upon the application and requirements different construction methods can be used, for example single casting or two-step molding. The single casting overlay is mainly used for colour decoration in residential or garden pavements. The two-step molding is mainly used for surfaces that need anti-skid requirements such as coloured bus lanes, deceleration zone and accident-prone road sections.


APPLICATIONS

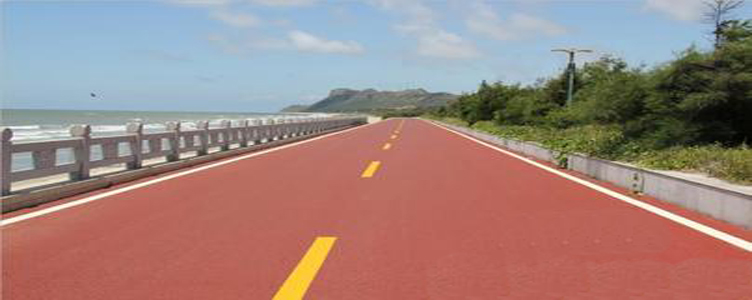

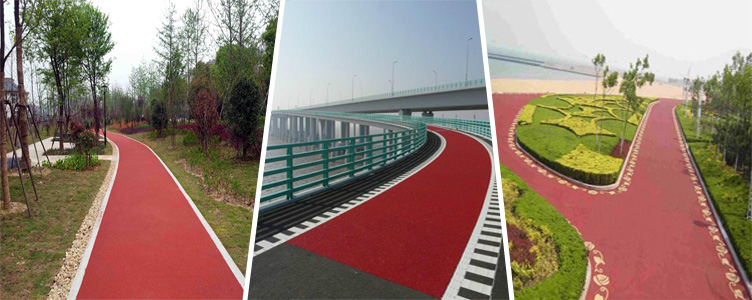

Colour epoxy asphalt is a patented product of The Bond Chemicals Co., Ltd. It can be used to replace traditional plain asphalt in paving coloured roads, anti-skid roads and providing other road functions by thin-layer road surfacing. The EP-191 can be colour-adjusted according to customer's requirements. It is suitable for colour mortar pavement by single-casting, colour flooring and other applications such as garage, bicycle lane and pedestrian bridge pavement.


PRODUCTS



APPLICATION GUIDE

1. Add product A to curing agent B into a container at a ratio of 2:1 and mix thoroughly for 2 to 3 minutes.

2. Clean the application surfaces and then apply the mixture.

3. The product should be stored within the temperature range of +5 to +30℃. Avoid direct sunlight.

4. The product shall not be mixed with any other products.

5. The shelf life of the product is 6 months from the production date.


Available Color Options:



TECHNICAL PARAMETERS


Physical Properties (Fully Cured Product) Test Results Standards

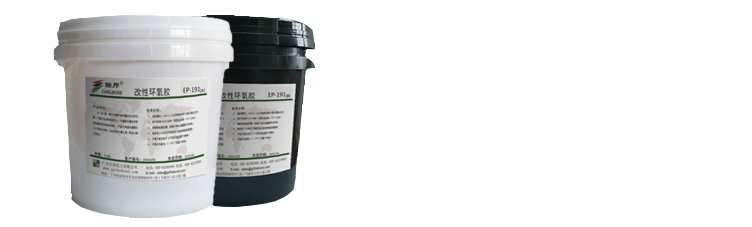

EP-191A/B
Tensile StrengthMpa 38.5 GB/T2569-1995
Elongation strengthMpa 20.3 GB/T2568-1995
Hardness (Shore D) 75 GB/T51-1999
Product Name Appearance Viscosity (25ºC, CPS) Curing Time (min) Initial Curing Time (25ºC, min) Mix Ratio A:B  RATIO
EP-191A Coloured viscous liquid 10000-13000 20 - 25 120 - 150 2
EP-191B Brown yellow liquid 600 – 800 20 - 25 120–150 1
