WATER-PROOF ANTI-CORROSION COATING
PRODUCT OVERVIEW
Coolbond ® epoxy asphalt mortar and waterproof repair mortar are multi-purpose products used in building construction. The products are based on environmentally friendly solvent-free epoxy resin with required aggregates and specially formulated additives. The Coolbond® products have strong adhesion on materials such as iron, steel, stone, engineering plastics, asphalt membrane, etc. They can be used as repair paste or thick slurry waterproof coatings. They are suitable for repair and leveling of acid-resistant brick, granite, marble, paste etc.
The products have following characteristics:
■ Eco-friendly, construction safe and reliable
■ Good non-flowing thixotropy property
■ Easy mix and application, high bond strength
■ Low shrinkage on curing to ensure long-term loading capacity, anti-aging properties
■ Anti-moisturizing permeability, water resistance, acid corrosion resistance
APPLICATIONS
Coolbond® EP-319 and EP-320 is a new generation of non-tar modified epoxy petroleum asphalt product. The performance is similar to that of epoxy coal tar and tar modified epoxy resin. It has excellent outdoor performance such as waterproof, anti-aging, anti-corrosion, etc. The product is versatile and can be used as a water-proof sealant to repair building leaks and damaged asphalt or concrete pavements. They have excellent adhesion and can be easily mixed and applied on to a variety of construction materials such as asphalt membrane, engineering plastics, metal, concrete, stone, brick, etc.
PRODUCTS

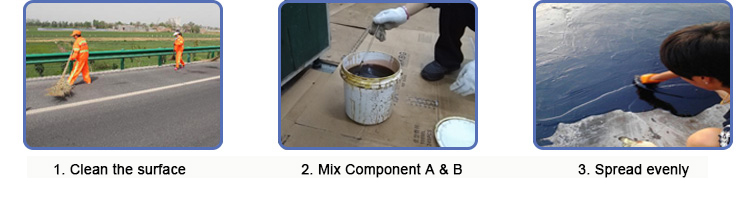

APPLICATION GUIDE
1. Clean the area to be coated and let dry.
2. Add product A to curing agent B into a container at a given ratio and mix thoroughly. Note Part B of the product shall be stirred before weighing as it will be precipitated after a period of time.
3. Use scraper to apply the mixed viscous clay evenly to the designated area.
Note:
1. The mixture shall be used up within specified operation (Gel) time.
2. The product shall not be used at the environmental temperature below 10oC. Clean the application surfaces.
TECHNICAL PARAMETERS
| Item | Epoxy mortar EP319 | Waterproof repair mortar EP-320 |
| Mixing ratio（weight ratio） | A:B=2:1 | A:B = 4:1 |
| Appearance (after mixing) | Black paste | Black paste |
| Density (after mixing) | 1.6 | 2.0 |
| Product open time @25℃ | 40 - 60 mins | 60 - 80 mins |
| Initial curing time @25℃ | 2-3 hours | 3-4 hours |
| Full curing time @25℃ | 24 hours | 24 hours |
| strength | Comply with GB50367, the design standard for reinforcement of concrete structure | |
APPLICATIONS
WATER-PROOF ANTI-CORROSION COATING
PRODUCT OVERVIEW
Coolbond ® epoxy asphalt mortar and waterproof repair mortar are multi-purpose products used in building construction. The products are based on environmentally friendly solvent-free epoxy resin with required aggregates and specially formulated additives. The Coolbond® products have strong adhesion on materials such as iron, steel, stone, engineering plastics, asphalt membrane, etc. They can be used as repair paste or thick slurry waterproof coatings. They are suitable for repair and leveling of acid-resistant brick, granite, marble, paste etc.
The products have following characteristics:
■ Eco-friendly, construction safe and reliable
■ Good non-flowing thixotropy property
■ Easy mix and application, high bond strength
■ Low shrinkage on curing to ensure long-term loading capacity, anti-aging properties
■ Anti-moisturizing permeability, water resistance, acid corrosion resistance
APPLICATIONS
Coolbond® EP-319 and EP-320 is a new generation of non-tar modified epoxy petroleum asphalt product. The performance is similar to that of epoxy coal tar and tar modified epoxy resin. It has excellent outdoor performance such as waterproof, anti-aging, anti-corrosion, etc. The product is versatile and can be used as a water-proof sealant to repair building leaks and damaged asphalt or concrete pavements. They have excellent adhesion and can be easily mixed and applied on to a variety of construction materials such as asphalt membrane, engineering plastics, metal, concrete, stone, brick, etc.
PRODUCTS
APPLICATION GUIDE
1. Clean the area to be coated and let dry.
2. Add product A to curing agent B into a container at a given ratio and mix thoroughly. Note Part B of the product shall be stirred before weighing as it will be precipitated after a period of time.
3. Use scraper to apply the mixed viscous clay evenly to the designated area.
Note:
1. The mixture shall be used up within specified operation (Gel) time.
2. The product shall not be used at the environmental temperature below 10oC. Clean the application surfaces.
TECHNICAL PARAMETERS
| Item | Epoxy mortar EP319 | Waterproof repair mortar EP-320 |
| Mixing ratio（weight ratio） | A:B=2:1 | A:B = 4:1 |
| Appearance (after mixing) | Black paste | Black paste |
| Density (after mixing) | 1.6 | 2.0 |
| Product open time @25℃ | 40 - 60 mins | 60 - 80 mins |
| Initial curing time @25℃ | 2-3 hours | 3-4 hours |
| Full curing time @25℃ | 24 hours | 24 hours |
| strength | Comply with GB50367, the design standard for reinforcement of concrete structure | |
APPLICATIONS
